AIR DRYER UNIT

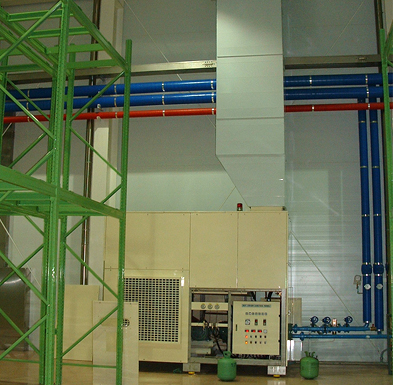

NEWTEMS AIR DRYER UNIT
Unlike Air-conditioning System, Air Dryer unit allows control of indoor air temperature and humidity. Re-heater reheats the air cooled from evaporator to lower relative humidity and
feed to indoor to provide excellent dehumidification effect.
Ventilation Fan may changed by design criteria, however, normal static pressure is set to 60mmAq~80mmAq decided by airflow Considering possible loss factor and static pressure from Duct.
In addition, easy Control of temperature, humidity condition and airflow, static pressure is possible to suit actual operating condition using Airflow controlling damper installed at
air-intake part of Fan.
NEWTEMS AIR DRYER UNIT CHARACTERISTIC
ㆍSince units are produced from 5HP to 75HP, product can be used at the warehouse and workshop for multi-purpose usage;
 also, there is broad range of choice when selecting the unit.
ㆍAir Dryer UNIT can be set to preferred steady temperature and humidity rate from controller.
ㆍNo need of installing separate heating appliances even in rainy season, and hard winter.
ㆍReducing installation dimensions to raise efficiency in warehouse and work place.
ㆍSaving 50% of absorbed power than Air-Conditioning System.
ㆍEasy for maintenance and check up due to less installed unit.
ㆍWhile Air-Conditioner is airtight compressor, Air Dryer Unit is half-airtight compressor for high durability.
ㆍBy using condensing water heat and no need of installing separate heating appliances, saving money and energy is possible.
ㆍEasy control of load fluctuation and power saving is possible by installing Un-Load System.
ㆍLow noise generation rate.
